Plugin Authoring Guide

Introduction

Trusted Analytics Platform provides an extensibility framework that allows new commands and algorithms to be added as plug-ins to the application.

Plug-ins do not require the author to have a deep understanding the REST server, execution engine, or any of its libraries. The framework will create the code necessary to call the plugin through the REST API as well as generate Python client code, leaving the author to focus on the execution logic.

Plug-ins are written in Scala and have a few requirements that follow this pattern:

1. Declare an arguments case class.
2. Declare a return value case class.
3. Define JSON serialization (most of which is provided through library calls).
4. Write the execution logic.

When to Write a Plugin

The framework provides a few different mechanisms for customization. The simplest is using Python User-Defined Functions (UDFs). While powerful, these functions are limited in scope to basic map and filter operations, like add_columns or drop_rows, which operate on a per-row basis. Plugins offer a far more extensibility for more complex custom operations, involving entire frames, multiple frames, external sources/sinks, analytics and machine learning algorithms, etc.

Plugin Support Services

Plugin Life Cycle

Each invocation resulting from a user action or other source will provide an execution context object that encapsulates the arguments passed by the user as well as other relevant metadata.

Logging and Error Handling

Errors that occur while running a plug-in will be reported in the same way that internal errors within Trusted Analytics Platform are normally reported.

Defaulting Arguments

Authors should represent arguments that are not required using default values in their case classes.

Configuration for commands and queries should be included in the Typesafe Config configuration file associated with the application (defaults can be provided by a reference.conf in the plugin’s deployment jar). Configuration details are discussed in the “Configuration” section below. Plugins have access to the configuration, but only the section of it that contains settings that are relevant.

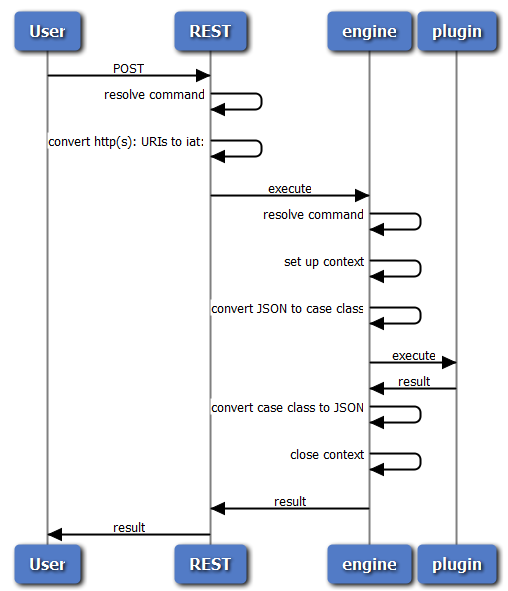

Execution Flow

Creating a CommandPlugin

Naming

All command plugins have a unique name. This name is the command’s identification and is also used to determine how command will be “installed” within the client-facing APIs. All commands are associated with an entity, which is the type of object the command is a member of. For example, the command for sorting rows in a frame has the formal name of “frame/sort”. The “frame” is the entity for the command, and the “sort” is the name of the function. This allows the Python client to support calling the plugin like this:

>>> my_frame.sort()

There is limited subtyping available with the entities. This is most common in plugins for models. For example, the “train” command for the KMeansModel looks like this: “model:k_means/train”, where “:k_means” denotes a model subtype.

REST Input and Output

Each command plug-in should define two case classes: one for arguments, and one for return value. The plug-in framework will ensure that the user’s Python (or JSON) commands are converted into an instance of the argument class, and the output from the plug-in will also be converted back to Python (or JSON) for storage in the command execution record for later return to the client. author must provide some serialization hints.

Frame and Graph References

The commands associated with a frame or graph accept the frame or graph on which they should operate as the parameter. Use the class org.trustedanalytics.atk.domain.frame.FrameReference to represent frames, and org.trustedanalytics.atk.domain.graph.GraphReference to represent graphs.

Use a FrameReference as the type, and place this parameter first in the case class definition if it is desired that this parameter is filled by the Frame instance whose method is being invoked by the user. Similarly, if the method is on a graph, using a GraphReference in the first position will do the trick for graph instances.

Single Value Results

The result returned by command plugins can be as complex as needed. It can also be very simple — for example, a single floating point value. Since the result type of the plugin must be a case class, the convention is to return a case class with one field, which must be named “value”. When the client receives such a result, it should extract and return the single value.

Creating a Jar with Plugins

Plugins are deployed in jar files that contain the plugin class, its argument and result classes, and any supporting classes it needs.

On application start up, the application will query all the plugin jar files it knows about to see what plugins they provide.

See the module-loader documentation and the example-plugins module for to learn more about creating plugin modules.

Deployment

Plug-Ins should be installed in the system using jar files. Jars that are found in the server’s lib directory will be available to be loaded based on configuration. The plug-ins that will be installed must be listed in the atk-plugin.conf file.

In the future, plugin discovery may be further automated, and it may also be possible to add a plugin without restarting the server.
